適用范圍
1、爆炸性氣體環境：1區、2區
2、場所中危險氣體或蒸氣：IIA、IIB、IIC
3、溫度組別：T1～T6
4、戶內、戶外（防護等級IP54, 可達IP65)
產品特點
1、鑄鋁合金外殼，表面噴塑
2、內可裝C65N(H)-C、C65N(H)-D、NC100H及類似小型斷路器
3、具有過載、短路保護功能
4、C65N(H)-C 優先適用于照明配電系統，C65N(H)-D優先適用于動力配電系統
5、進出線腔、電器元件腔分別獨立

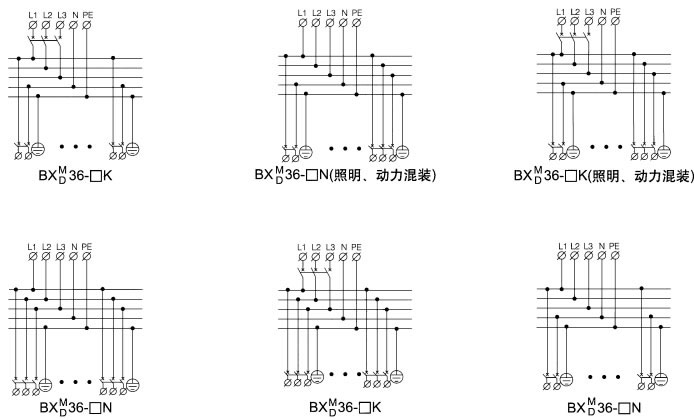

6、輸入：3P+N+PE 輸出：3P+N+PE或1P+N+PE
7、可根據用戶要求特制
8、可鋼管或電纜布線，電纜布線須配電纜夾緊密封接 |
|
Applying scope
1、Explosive gas atmospheres:Zone 1＆2
2、Dangerous gases or vapors zone: IIA、IIB、IIC
3、Temperature classes:T1～T6
4、Indoor and outdoor (IP 54,It could be designed as IP65 according to user′s requirements)
Features
1、Enclosure is made of casting aluminium alloy,surface is sprayed with plastics
2、Built-in small breaker such as C65N(H)-C, C65N(H)-D,NC100H etc
3、With overload and short circuit protection function
4、C65N(H)-C is preferable of lighting distribution system and C65N(H)-D for power distribution system
5、Inlet,outlet compartment and component compartment are independent from each other
6、Input:3P+N+PE , output: 3P+N+PE or 1P+N+PE
7、For user′s requirements, it could be specially made
8、Wiring with conduit or cable,For cable, it should be fitted with explosion-protected cable sealing connector
|
