BAP52系列防爆平臺燈(IIB、IIC、e)
|
|
| |
|
適用范圍
適用范圍同相應的配裝燈具。Can be use in zone same as equipped lamp.
|
產品特點
1、燈桿采用優質鋼管表面噴塑。
2、彎桿和直桿采用插接式連接，便于安裝和調整燈具的轉向。
3、01、02、05、06型可根據用戶要求配裝燈傘。
4、符合GB3836-2000，IEC60079標準要求。
Features
1、The lamp pole is made of steel pipe with plastic-sprayed surface.
2、Bend or vertical pole is inserted to connect, with the convenience to install and rotate the direction.
3、Type 01、02、05、06 can install lamp cover to user’s requirement.
4、Suitable for GB3836-2000, IEC60079 standard request. |
|
|
 |
| |

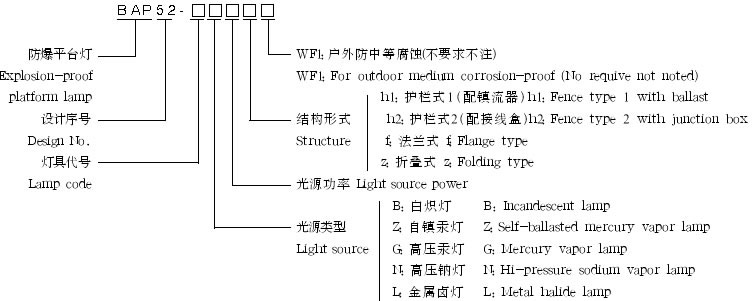

| 燈具代號 Lamp code |
代號 |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
|
BAD51 |
BAD52 |
BAD52-e |
BAD54-e |
BAD54 |
BAD56 |
BAD61 |
BAD56-e |
防爆標志 |
d II BT4 |
d II BT4 |
e II T3 |
e II T2 |
d II BT4 |
d II CT4 |
d II CT4 |
e II T3 |
|
|
| |
|
| 配用光源 Supplied with lamp |
|
型號 |
自鎮汞燈125W |
自鎮汞燈160W |
白熾燈200W |
高壓汞燈125W |
高壓鈉燈110W |
金鹵燈110W |
燈座 |
BAP52-01 |
√ |
√ |
√ |
√ |
√ |
√ |
E27 |
BAP52-02 |
√ |
√ |
√ |
√ |
√ |
√ |
BAP52-03 |
√ |
|
√ |
√ |
|
√ |
BAP52-06 |
√ |
√ |
√ |
√ |
√ |
√ |
BAP52-07 |
√ |
|
|
√ |
√ |
√ |
BAP52-08 |
√ |
|
√ |
√ |
|
√ |
|
|
| |
|
型號 |
自鎮汞燈250W |
白熾燈300W |
高壓汞燈175W |
高壓汞燈125W |
金屬鹵燈175W |
金屬鹵燈250W |
高壓鈉燈150W |
高壓鈉燈250W |
燈座 |
BAP52-04 |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
E40 |
BAP52-05 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
| |
|
|
|
|
|
BAP52-01 |
BAP52-02 |
BAP52-03 |
BAP52-04 |
|
|
|
|
BAP52-05 |
BAP52-06 |
BAP52-07 |
BAP52-08 |
|
| |
|
 |

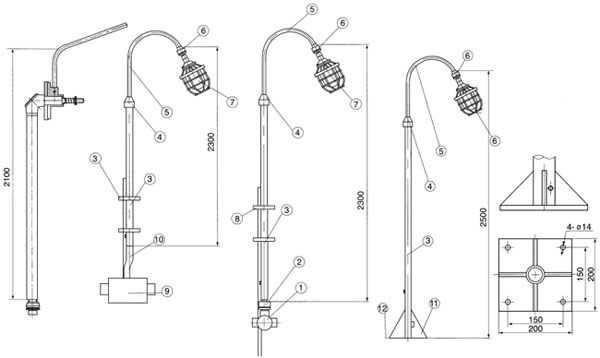

折疊式燈桿 平臺燈配鎮流器式安裝(h1) 平臺燈配接線盒式安裝(h2) 平臺燈法蘭式安裝
|
| |
|
序號 No. |
名稱及規格 Description and specification |
備注 Remark |
1 |
接線盒3/4″三通 Junction box 3/4″(3 outlets) |
用戶自備 Prepared by user |
2 |
活接頭 Active connector |
3/4″ |
3 |
管子 Pipe |
11/2″ |
4 |
異徑接頭 Connector |
|
5 |
彎桿 Bend pipe |
1″ |
6 |
異徑活接頭 Active coupler |
|
7 |
防爆燈 Explosion-proof lamp |
|
8 |
U型管夾“U”clamp |
用戶自備 |
9 |
鎮流器 Ballast |
用戶自備 |
10 |
撓性連接管 Flexible connecting pipe |
用戶自備 |
11 |
支撐架 Support |
|
12 |
底板 Bottom plate |
|
|
|
| |
|
| |
|
