AC-Z系列防爆插銷(IIB、IIC)


適用范圍
1、1區、2區危險場所。
2、IIA、IIB、IIC類爆炸性氣體環境。


Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in IIA, IIB, IIC group explosive atmosphere.



產品特點

1、鑄鋁合金外殼,表面噴塑。
2、具有聯鎖結構,只有插座內的開關分?jǐn)嗪蠓侥馨纬? 插頭。
3、電纜或鋼管布線均可。
4、符合GB3836-2000,IEC60079標準要求。

Features
1、The shell is of diecasted Al-alloy with plastic-sprayed surface.
2、With interlocks, only if the switch insid the socket is off, the plug can be brought out.
3、Suitable for steel pipe and cable wiring.
4、Suitable for GB3836-2000, IEC60079 standard request.

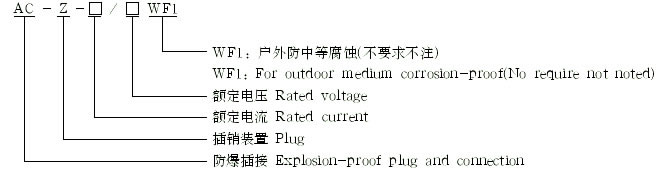

型號含義 Type designation



主要技術參數 Main technical parameters
產品型號
額定電壓(V)
額定電流(A)
使用類別
防爆標志
電纜外徑
防護等級
進線口螺紋
極數
AC-Z-16
380/220
16
AC-1
AC-3
Exde II BT6
8-14
IP54
1
1P+N+PE
3P+N+PE
AC-Z-32
32
12-19
1
AC-Z-63
63
*Exde IICT6
20-26
1 1/2
AC-Z-100
100
27-33
2

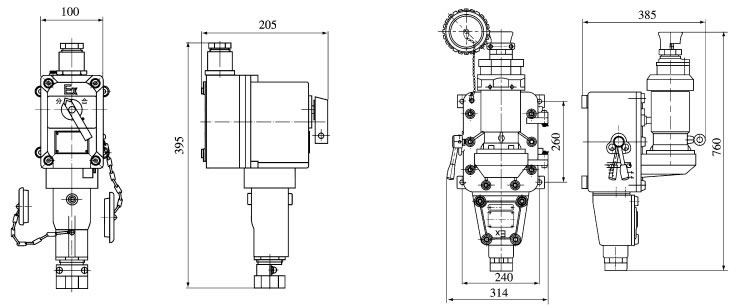

外形尺寸及安裝尺寸 Outline and mounting example
